6 Types of Pitched Roofs

Everything you need to know about roof pitches.

Updated on

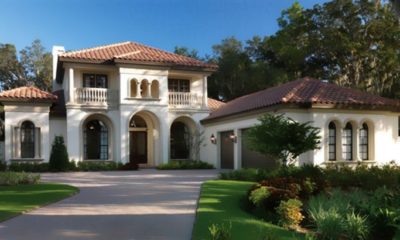

A high-pitched roof. PHOTO | COURTESY

What is a Roof Pitch?

A roof pitch is a figure that tells the number of inches a roof rises for every 12 inches. It measures the steepness of a roof and is obtained by dividing its vertical rise by its horizontal span.

An example of a roof pitch is ‘8/12 pitch’ which means the roof rises 8” for every 12″ inward towards the peak. This is a slope of 33.7 degrees.

Roof pitches are meant to allow a roof to redirect snow to avoid possible collapse of the roofing. High pitches are best for regions with heavy snowfall, while low pitches are best for arid areas.

Pitched Roof

Roofs with roof pitches of more than 10 degrees are known as pitched roofs. There are three types of pitched roofs: low-pitched, conventional, and high-pitched roofs.

Low-pitched roofs have a roof pitch below 4/12 (33.3%) and are difficult to maintain because they require special materials to prevent leaks.

On the other hand, conventional roofs have pitches that range from 4/12 to 9/12 (33.3% to 75.0%) and are the easiest to build and maintain. They are the most common types of pitched roofs.

High-pitched roofs often range from 10/12 to 12/12 but can be as high as 21/12 (175%).

Pitched Roofs

Different types of pitched roofs exist, depending on the gradient, aesthetics, ecological considerations, and the number of sloping surfaces, including:

  • Mono Pitch Roof
  • Double Roof
  • Couple Roof
  • Closed Couple Roof
  • Purlin Roof
  • Collar Roof

1. Mono Pitch Roof

Also referred to as shed roof, mono-pitch roof is the most basic form of pitched roof with only a single sloping surface. It is simply a roof that slants in one direction.

A mono-pitch roof is made up of two parts: the rafter and the beams. The rafter is the equilateral triangle that supports the roof covering parallel with the lining materials of the ceiling.

An elongated rafter may be reinforced with a beam to avoid rafter deflection.

Beams are small horizontal pieces of wood or metal that form a 90-degree angle with the rafter. They are designed to provide solid support for the rafter to enhance its strength and durability.

Thanks to its simplicity, a mono-pitched roof is cheap to construct as it uses nominal materials, which makes it one of the common roof types for go-downs, garages and granaries.

2. Double Roof

Also known as double-pitched roof, this is easily the most common pitched roof. It is simply a combination of two mono-pitched roofs, each facing the opposite direction.

They are made of lightweight roof trussers commonly known as trussed rafters.

A double-pitch roof is made up of two parts: purlins and rafters. Purlins are beams that are protected under the rafters at a point between the peak and the wall plate. They help to reduce the size of the rafters thus making the structure more economical.

RELATED: 3 Types of Flat Roofs for Houses

Double roofs, with slopes ranging from 45-60 degrees, guarantee good drainage for a house, especially one in a region with heavy rainfall and snowfall. And, as in the case of mono-pitched roofs, installation and maintenance are easy.

3. Couple Roof

This roof is made of a pair of rafters that slope upwards from the opposite walls to meet at the ridge in the middle. The two rafters act like two arms joined at the top hence the name.

During the construction of couple roofs, the wall plates are attached to both supporting walls after which a ridge piece is secured at the central ridge. One end of the main rafters is placed on the ridge piece, while the other end is made to rest on the wall plates.

Covering is provided over the purlins that are positioned atop the main rafters.

Couple roofs are lightweight, easy to construct, and ideal for places with a maximum span of 3.7 metres. They are mainly used in garages, godowns and houses with low spans between the pillars.

4. Closed Couple Roof

Closed couple roofs are similar to couple roofs only that the feet of common rafters are connected by a horizontal beam known as tie beam.

The horizontal ties are pinned to the rafters and the wall plates to prevent the common rafters from spreading and thrusting out of the wall.

Closed couple roofs provide some extra triangular space that can be used for storage.

5. Purlin Roof

Purlin roofs are fitted with purlins – horizontal beams used for structural support in a roof. Purlins are used in both timber and steel frame construction to carry the roof deck or sheathing loads.

The use of purlins is common in pre-engineered metal roofing systems as well as the ancient post-and-beam and the more recent pole construction method of frame construction.

One of the major advantages associated with the use of purlins is that they can allow you to choose a variety of shapes and designs for your roof. You can easily flatten, slope, or cone-shape your roof.

6. Collar Roof

A collar roof is similar to a couple-close roof only that it uses a collar tie instead of a horizontal beam.

A collar tie is a horizontal bar nailed to the rafters above the legs of the rafters – almost in the middle. They should not be fitted more than a third or half of the rise of the roof from the wall plate.

Collar ties are used in roofs with extended spans to prevent the rafters from sagging due to the excessive weight of the roof covering.

Collar roofs are used in situations where the clear span measures between 4.4-5 metres.
